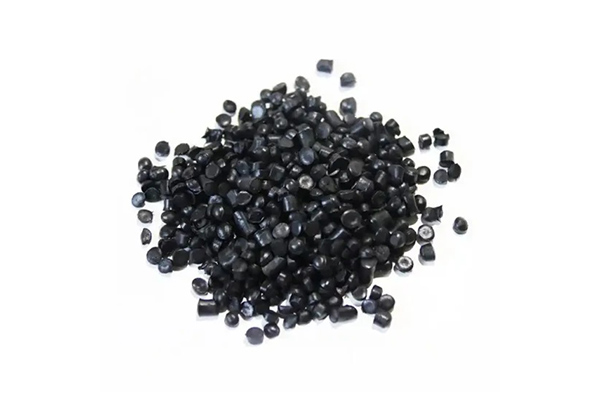

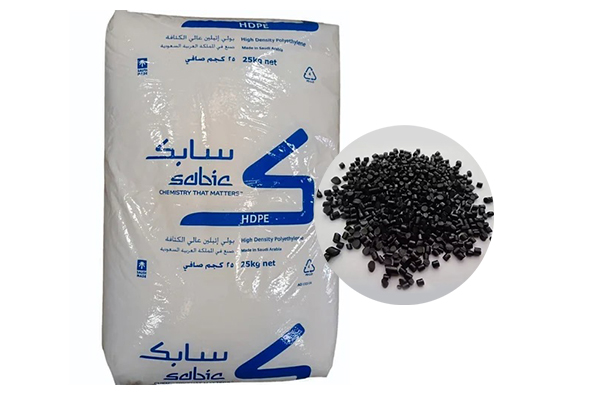

Sabic P6006 is black compound high density polyethylene (class MRS 10 – PE 100) with bimodal distribution of molecular mass. It is specifically designed for pressure Pipe applications. P6006 Sabic can offer excellent stress crack resistance (ESCR) and very good long-term hydrostatic strength.
Typical Applications of Sabic HDPE P6006
HDPE P6006 Pressure pipes for drinking water, irrigation, gas distribution and waste water pipes. It is also recommended for manufacture of chemical liners and containers.
| PROPERTIES |
TYPICAL VALUES |
UNITS |
TEST METHODS |
| POLYMER PROPERTIES |
| Melt Flow Rate (1) |
|
| @ 190°C & 5 kg load (1) |
0.23 |
g/10 min |
ISO 1133 |
| @ 190°C & 21.6 kg load (1) |
6.2 |
g/10 min |
ISO 1133 |
| Carbon black content (1) |
2.25 |
% |
ISO 6964 |
| Density at 23°C (1) |
959 |
kg/m³ |
ASTM D1505 |
| MECHANICAL PROPERTIES |
|
|
|
| Tensile Strength at Yield (2) |
23 |
MPa |
ASTM D638 |
| Tensile Elongation at Yield (2) |
9 |
% |
ISO 527-1/-2 |
| Tensile modulus (2) |
900 |
MPa |
ASTM D638 |
| Charpy Impact Notched @ 23°C (3) |
26 |
kJ/m² |
ISO 179 |
| Charpy Impact Notched @ -30°C (3) |
13 |
kJ/m² |
ISO 179 |
| Hardness (Shore D) (3) |
63 |
– |
ASTM D2240 |
| THERMAL PROPERTIES |
|
|
|
| Vicat Softening Point @ 50N (VST/B) |
74 |
°C |
ISO 306 |
| OIT (210°C) |
>20 |
min |
EN 728 |
